Description

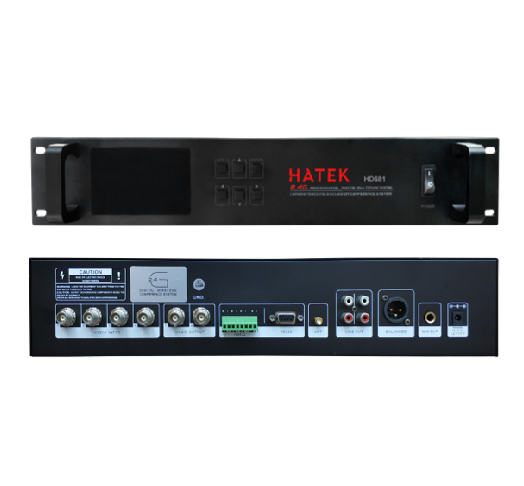

This product is a wireless intelligent discussion conference system with video tracking function. It uses digital wireless processing technology to process audio signals and control signals, no need for complicated wiring. With the scientific ID code design, it can be used when the power is turned on, easy to install and operate. This system has various speaking modes and a video tracking function, making it an indispensable part of the digital wireless video conference system.
Specifications
Model
HD681
Power Supply
DC12-17V
Frequency Range
2400MHZ-2483.5MHZ
Operating Mode
FHSS
Reception Mode
FSK
Receiving Sensitivity
≧100dBm
SNR
>90dB
Distortion
<0.05%dB
Effective Working Distance (in Open Environment)
≤30m (Omnidirectional antenna)
≤40m (Connect directional antenna)
≤70m (Connect antenna amplifier + directional antenna)
Power
6.5W
EIA Standard Chassis
Suitable for desktop or rack-mounted installation.
Conference Mode
FIFO, limited speech, chairman only, time-limited speech.
Three kinds of audio output terminals can be connected to recording or audio equipment.
4.3″ TFT full-view LCD displays working status. There are 6 function buttons for system function setting and adjustment.
Host Package Dimensions (L×W×H)
560×480×195mm
Host Machine Dimensions (L×W×H)
480×410×84mm
Host Gross Weight
8kg
Host Net Weight
4.2kg
