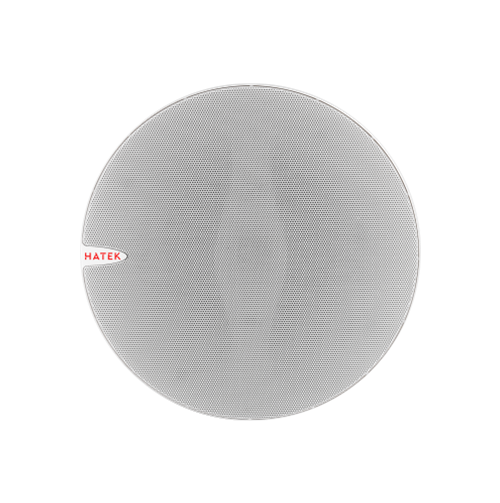

HiFi Coaxial Ceiling Speaker With Power Tap 30W – HCS530

Description

The HCS530 is a Hifi ceiling speaker, which can be switched between the voltage terminal and the ohms terminal. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.

The built-in 6.5” speaker driver is designed of wide frequency response 100-20,000Hz, and rated power is 1.9~30W. It is made of high quality ABS material, which ensures long-term durability, and will never be out of shape or fading; Construction of dual-crossover, its flush mount type makes the easy and secure installation; High fidelity voice quality, good performance of bass, clear and sonorous sound.

It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specifications

Model

HCS530

Full-range

6.5” x 1

Rated Power

30W

Line Input

70/100V, 4-16Ω

Sensitivity (1M,1W)

91± 2dB

Max SPL(1M)

111± 2dB

Freq. Response

100-20,000Hz

Cutout Size

Ø232-242 mm

Weight

4.0kg
