Description

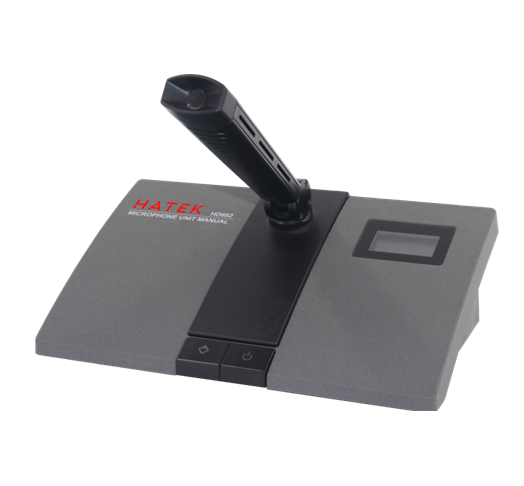

This product is a wireless delegate microphone for 2.4G wireless microphone system, which adopts cardioid directional condenser pickup microphone. It features an LCD display to display the working mode, unit ID, battery power, speaking status, and speaking time. HD683D is rechargeable with built-in lithium battery.
Specifications
Delegate MIC
HD682D
HD683D
Power Supply
DC4.5V, 1.5V AA*3
Built-in lithium battery 3.7V 2100mAh
Modulation Mode
FSK
Transmitting Power
10mW
Pick-up Microphone
Condenser, unidirectional
Sensitivity
—38±2dB@1KHz
Frequency Response
20Hz~20KHz
Operating Current
140mA
Microphone Rod Length
136mm, 270mm and 400mm available
Conference Unit Package Dimensions (L×W×H)
460×280×95mm
Conference Unit Machine Dimensions (L×W×H)
190×127×63mm
Conference Unit Gross Weight
2.2kg
Conference Unit Net Weight
0.7kg
