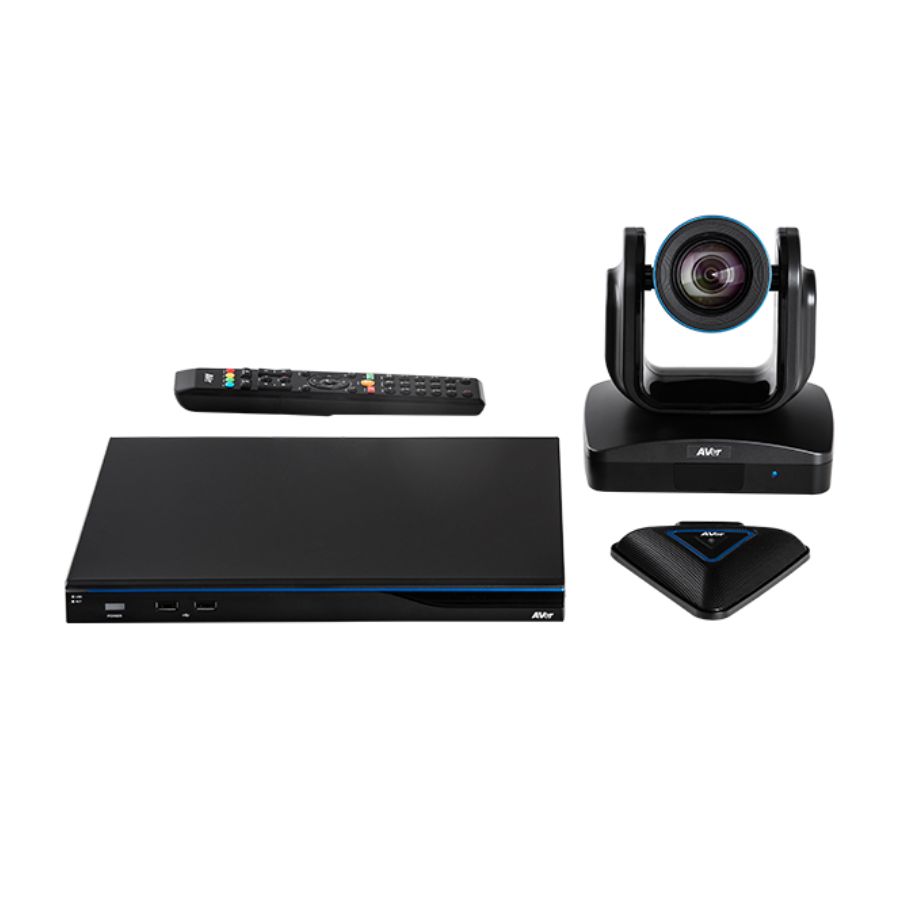

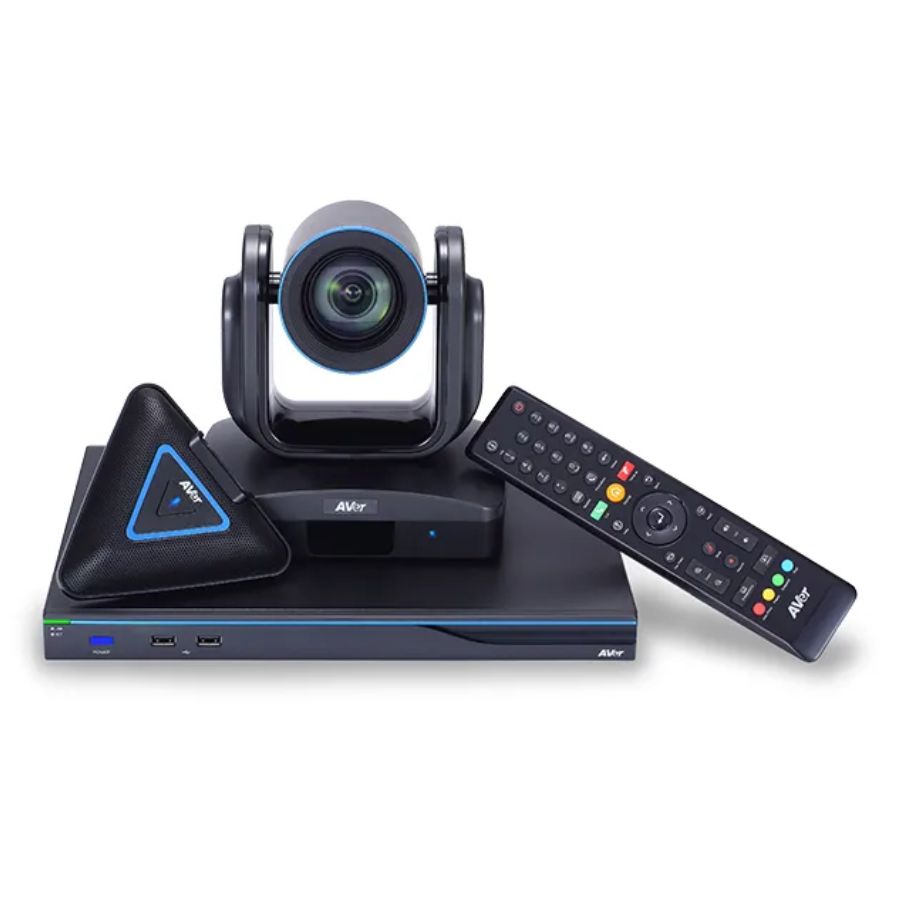

Aver EVC170

• Audio standards
  • G.711, G.722, G.722.1, G.728, G.722.1C, AAC-LD, G729
• Audio features
  • Automatic gain control (AGC)
  • Advanced noise reduction (NR)
  • Acoustic echo cancellation (AEC)
• Audio inputs
  • EVC microphone daisy chain up to 4
  • HDMI
  • Line-in (3.5 mm)

• Audio outputs
  • HDMI x 2
  • Line-out (3.5 mm)
• Other supported standards
  • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
  • RTP, RTCP, H.350, SRTP, H.235, HTTP, HTTPs, Telnet, DHCP, DNS
• User interface
  • Single/dual-monitor layout styles
  • User-friendly OSD
    (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
  • Display/edit site name

• Network
  • 10/100/1000Mbps
  • NAT/firewall traversal (H.460)
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Packet Loss Recovery (PLR)
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • Network test
  • Quality of service (QoS)
  • VLAN (802.1Q / 802.1P)
  • EAP 802.1x
• Security
  • AES (Advanced Encryption Standard) function (128-bit) and H.235
  • Password protection for system settings
  • Password protection for remote system management
• Web management tool
  • Remote management
  • Live monitoring
  • Firmware update
  • Phonebook download/upload/edit
  • Restore system settings
  • Export call history
  • HTTP and HTTPs

• Value-added features
  • Meeting recording
    • In-meeting and offline recording
    • Save directly to USB flash drive
    • Supports screen re-layout during playback
    • Playback and file conversion via VCPlayer software (.MOV and .MP4 format)
  • EZMeetup / EZMeetup Plus software/App
    • 30-day for free trial
    • Connect with H.264 and H.264 HP video codecs
    • Receive resolution up to full HD 1080p at 30fps
    • Transmit resolution up to full HD 1080p at 30fps
    • Support content sharing, capturing and recording
  • EZDraw App
    • Import .JPG, .PNG, .GIF and .BMP files
    • Export .PNG files
    • Connect up to 10 devices
  • ScreenShare software (Wirelessly share content)
  • VCLink software (control and sharing in smartphone)
  • Dual-monitor support output (video and content sharing)
  • Speed dialing via hot keys (10 sets)
  • Camera presets (100 positions)
  • Firmware updates via USB flash drive
  • Screensaver and auto power-off mode
  • Network Time Protocol (NTP)
  • SnapShot
  • Supports SIP voice calls
  • iSCSI storage device settings
  • Built-in meeting server
  • Supports AVer Register Server (ARS)
  • Far-end Camera Control
  • Meeting ID method
• Power supply
  • AC 100V ~240V, 50/60 Hz
  • Consumption: EIAJ 12V, 5A
• Environmental data
  • Operation temperature: 0 ~ 40°C
  • Operation humidity: 20 ~ 80%
  • Storage temperature: -20 ~ 60°C
  • Storage humidity: 20 ~ 80%

• Physical characteristics
  • Package dimensions: 376 x 300 x 243 mm
  • Package weight: 6.99kg (14.31lbs)
  • Main system (codec): 320 x 262.7 x 37.2 mm
  • eCam PTZ IV: 180 x 144 x 184 mm
  • EVC microphone array: 131.9 x 118.6 x 25.5 mm
• Optional accessories
  • Additional microphone
  • Camera mount
  • USB-to-RS232 converter
• Software options
  • WebRTC License

• Warranty**
  • Camera/Codec/Microphone: 3+2 year
  • Accessories: 1 year

*G.722.1/G.722.1C, licensed from Polycom®
**Please register online to receive a free, 2 year warranty extension. For detailed warranty information, please contact an AVer representative.
